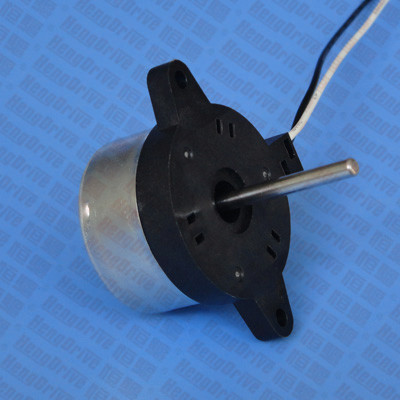

B3020S

Outer Rotor

Output Power 输出功率: 0.3W~12W

Weight 重量: 75g (Approx.)

外转子

3-Phase Brushless DC Motor-Typical Application 三相无刷直流电机-典型应用

Automotive Parts: Micro Fan  汽车部件：小型风扇

Home Application: Small Electric Fanner, USB Fan, Small Air Fresher,

Electric Cooker

家用电器：小功率电风扇，USB电风扇，小功率空气清新机，电饭煲

Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan

医疗器械：医疗泵，鼓风机，超静音风扇

Industry Equipment: Electric Valve, Actuator  工业设备：电动阀门，致动器

Business Equipment: Printer, Copier, Projector

商业设备：打印机，复印机，投影机

Personal Care: Shaver, Hair Dryer, Massager   个人护理：电动剃须刀，风筒，按摩器

Model

型号

电压 Voltage(V)

No Load 空载

Rated Load 额定负载

Stall 堵转

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3020S-S01 (RU-M)

5-12

5

4600

0.26

1.472

4150

0.36

0.64

15.12

0.9

B3020S-S02(NdFeB)

5-12

5

3060

0.19

6.308

2130

0.42

1.41

20.56

0.9

B3020S-S03 (RU-M)

8-26

12

11450

0.17

4.433

8530

0.49

3.96

17.39

0.85

B3020S-S04(NdFeB)

8-26

12

7090

0.19

9.391

5440

0.63

5.35

40.54

0.85

B3020S-S05 (RU-M)

8-26

24

14680

0.11

5.886

7810

0.37

4.82

12.57

0.75

B3020S-S06(NdFeB)

8-26

24

11450

0.15

10.864

9050

0.57

10.30

51.89

0.75

B3020S-S07(NdFeB)

8-26

12

2330

0.085

6.00

1884

0.21

1.18

31.38

0.85

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

B3020S-S01                  5V

 B3020S-S05               24V
