专业研发、生产无刷电机及其驱动器

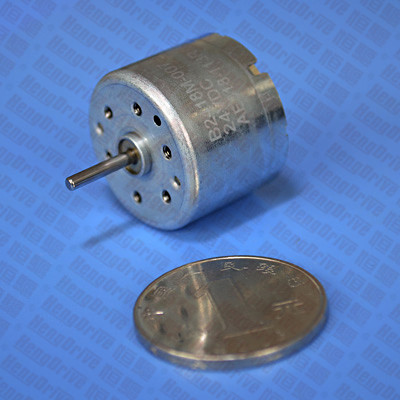

B2418M 无刷电机

    B2418M

    Output Power 输出功率: 1W~6W

    Weight 重量: 30g (Approx.)

    Brushless DC Motor-Typical Application 直流无刷电机-典型应用

    Automotive Parts: Micro Pump, Valve   汽车部件：微型泵，阀

    Home Application: White Goods, Small Appliance, Small Fanner,

    Electric Cooker

    家用电器：白色家电，小家电，小型风扇，电饭煲

    Medical Apparatus: Medical Pump, Medical Stirrer, Centrifugal Machine

    医疗器械：医疗泵，医用搅拌器，离心机

    Industry Apparatus: Electric Valve, Portable Screwdriver,

    Air/Water/Vacuum Pumps

    工业设备：电动阀门，手持电批，气泵，水泵，真空泵

    Business Equipment: Scanner, Cash Register, Card Sender

    商业设备：扫描仪，点钞机，发卡机

    Personal Care: Hair Curler, Hair Straighter, Hair Dryer, Electric Shaver,

    Massager,Vibrator

    个人护理：卷发器，风筒，电动须刨，按摩器，直发器，震动器



    Model

    型号

    电压 Voltage(V)

    No Load 空载

    Rated Load 额定负载

    Stall 堵转

    Operating Range

    Rated

    Speed (rpm)

    Current (A)

    Torque (mNm)

    Speed (rpm)

    Current (A)

    Output P. (W)

    Torque (mNm)

    Current (A)

    B2418M-S01

    5-12

    6

    10300

    0.19

    2.45

    7800

    0.67

    2

    11.6

    2.22

    B2418M-S02

    8-26

    12

    6520

    0.08

    2.45

    4660

    0.24

    1.2

    8.4

    0.65

    B2418M-S03

    8-26

    12

    12420

    0.127

    2.94

    9580

    0.43

    2.96

    12.8

    1.47

    B2418M-S04(N10)

    8-26

    24

    12550

    0.065

    5.89

    9200

    0.39

    5.64

    22.4

    1.24

    B2418M-S05

    8-26

    24

    8660

    0.055

    2.94

    6690

    0.169

    2.06

    12.8

    0.55

    Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 5000-50000hrs

    特征：双转向，信号功能，锁定保护，无级调速，低噪音，低电磁干扰，超长寿命5000-50000小时

    Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

    注意：上述规格仅针对特定客户，电压、扭矩、转速、电流、功率、输出轴的特征和尺寸等都可以按照客户的特殊要求进行调整。

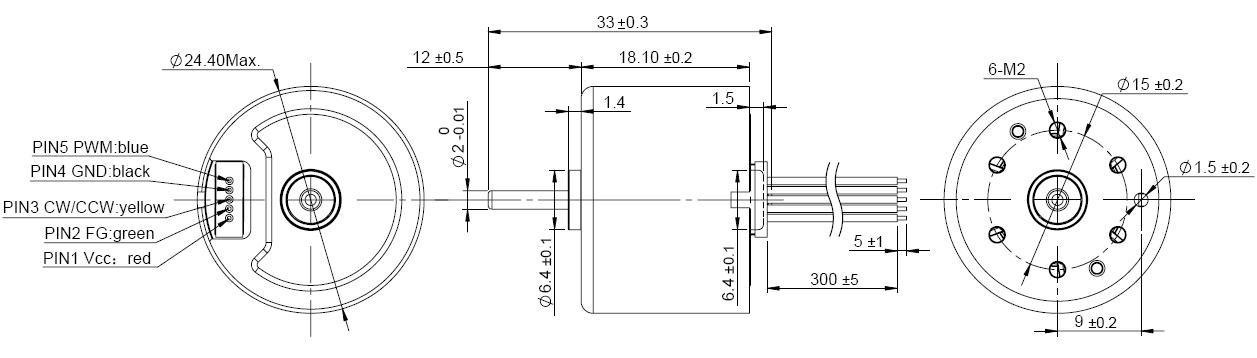

    Outline Drawing 外形图:  Usable machine screw length 1.5mm max from motor mounting surface      Unit: Millimeter

    Performance Curve 性能曲线:

    B2418M-S02                 12V

    B2418M-S04                 24V
